B+B SmartWorx Serial RS-232 DB9 Female To TTL DB9 Male Port Powered Converter

by
ADVANTECH
PCN#
3V6807
MFG#
232LPTTL

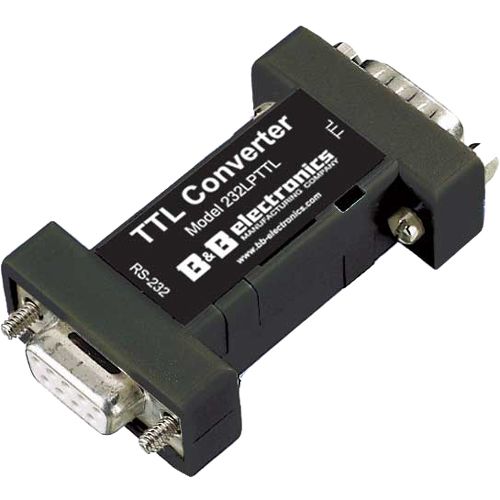

main product photo
fotorama-image
ADVANTECH Authorized Dealer
$73.04
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 1 x 9
  • pin DB
  • 9 RS

Show more

Product Condition: New and Factory Fresh
Limited WarrantyLifetime
Shipping Weight: 2 lbs.
B+B SmartWorx Serial RS-232 DB9 Female To TTL DB9 Male Port Powered Converter
Overview
Tech Specs
Specifications

Manufacturer

Advantech Co., Ltd

Manufacturer Part Number

232LPTTL

Manufacturer Website Address

http://www.advantech.com

Brand Name

B+B SmartWorx

Product Model

232LPTTL

Product Name

Serial RS-232 DB9 Female To TTL DB9 Male Port Powered Converter

Marketing Information

Model 232LPTTL converts RS-232 to 5VDC TTL/CMOS compatible levels. Model 232LPTTL33 converts RS-232 to 3.3VDC TTL/CMOS compatible levels. Two channels are used to convert from RS-232 to TTL/CMOS signals and two channels are used to convert from TTL/CMOS signals to RS-232. These converters support TD, RD, RTS, and CTS. DB9S female connector on the RS-232 side. DB9P male connector on the TTL/CMOS side. This unit is powered from the RS-232 data and handshake lines, whether the lines are high or low.

Product Type

Power Connector Adapter
Technical Information

Adapter Type

Serial

Connector Type on First End

DB-9 RS-232 Serial - Female

Connector on First End Details

1 x 9-pin DB-9 RS-232 Serial Female

Connector Type on Second End

DB-9 Serial - Male

Connector on Second End Details

1 x 9-pin DB-9 Serial Male
Miscellaneous

Certifications & Standards

  • CE
  • EN 55022
  • EN 61000-6-1
  • EN 61000 (-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11)
Warranty

Limited Warranty

Lifetime
