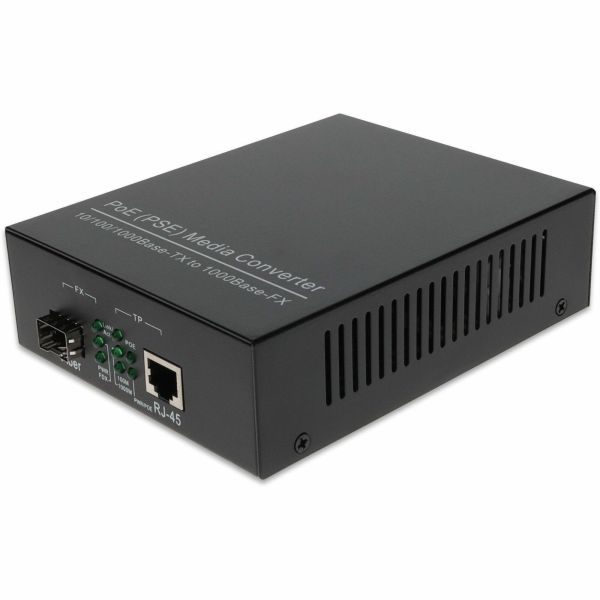

1G-TX RJ-45 TO 1G-FX CONVERTER OPEN MULTI-RATE SFP PORT 30W POE+

Name: 1G-TX RJ-45 TO 1G-FX CONVERTER OPEN MULTI-RATE SFP PORT 30W POE+
Brand: ADDON
SKU: 09XX30
Price: 124.38 USD
Availability: InStock

ADDON

PCN#

09XX30

MFG#

ADD-GMC-SFPMR-POE+

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$124.38

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

Network (RJ
45)
1x PoE+ (RJ
45) Ports
Multi
mode, Single
mode
Gigabit Ethernet
10/100/1000Base
TX, 100/1000Base
FX
1 Gbit/s
0.10 km
SFP
AC

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

AddOn 10/100/1000Base-TX(RJ-45) to 100/1000Base-FX Open Multi-Rate SFP Port 30W POE+ Media Converter

Overview

Tech Specs

Specifications

Manufacturer	AddOn
Manufacturer Part Number	ADD-GMC-SFPMR-POE+
Manufacturer Website Address	http://www.addoncomputer.com
Brand Name	AddOn
Product Name	Transceiver/Media Converter
Marketing Information	This is a multi-rate media converter that converts a 10/100/1000Base-TX(RJ-45) to 100/1000Base-X via an open SFP port connector. The open SFP port allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE+ media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, 30 watts max, providing power to IEEE802.3at powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3at standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Packaged Quantity	1
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
Number of PoE+ (RJ-45) Ports	1
PoE Port Type	PSE

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode Single-mode
Maximum Data Transfer Rate	1 Gbit/s
Maximum Distance Supported	0.10 km

I/O Expansions

Expansion Slot Type

SFP

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-TX 100/1000Base-FX

Power Description

Power Source	AC
Input Voltage	120 V AC
Power Consumption	30 W

Physical Characteristics

Height	5.5"
Width	4.5"
Depth	1.8"
Weight (Approximate)	8 oz

Miscellaneous

Application/Usage	Network
Additional Information	Management Type: Unmanaged
Compatibility	Compatible OEM: Industry Standard
Country of Origin	China
TAA Compliant	No

Warranty

Limited Warranty

3 Year
