ADDON 10/100/1000BASE-TX(RJ-45) X2 TO 1 OPEN SFP PORT POE (15W) MEDIA CONVERTER

Name: ADDON 10/100/1000BASE-TX(RJ-45) X2 TO 1 OPEN SFP PORT POE (15W) MEDIA CONVERTER
Brand: ADD-ON
SKU: 8748AZ
Price: 111.88 USD
Availability: InStock

ADD-ON

PCN#

8748AZ

MFG#

ADD-GMC-2RJSFP-POE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$111.88

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

2 x Network (RJ
45)
Single
mode, Multi
mode
Gigabit Ethernet
10/100/1000Base
TX
328.08 ft
1 x Expansion Slots
SFP (mini
GBIC)
1 x SFP Slots
Power Supply
Standalone
TAA Compliant

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

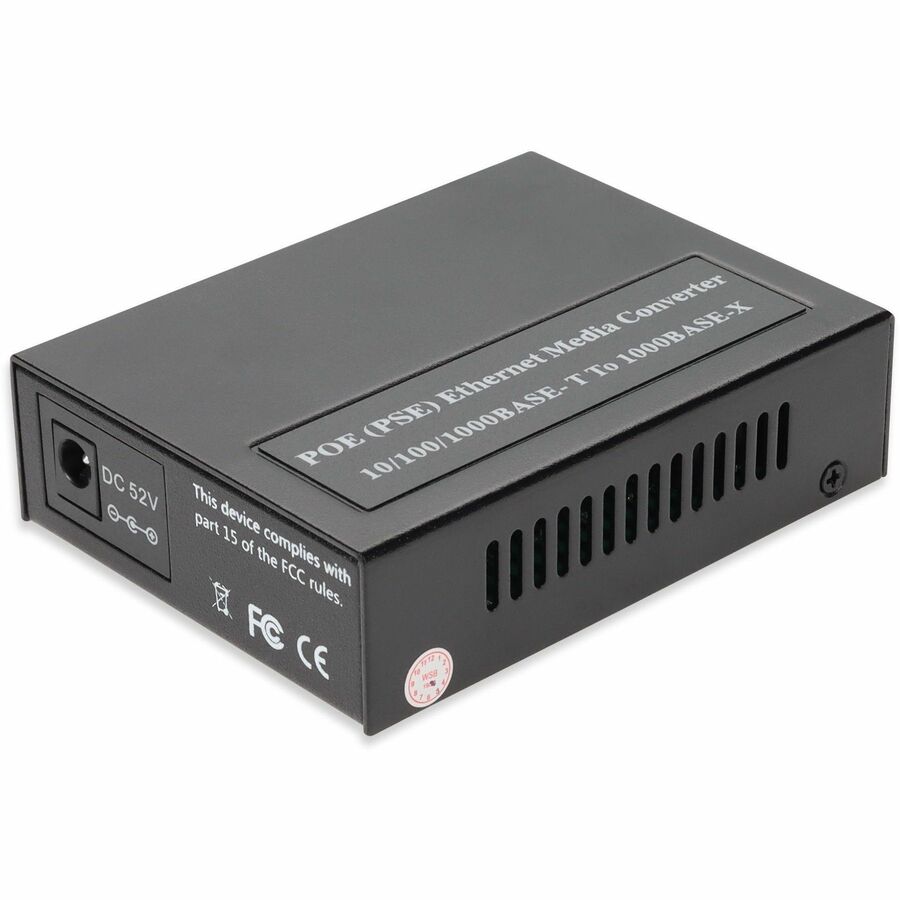

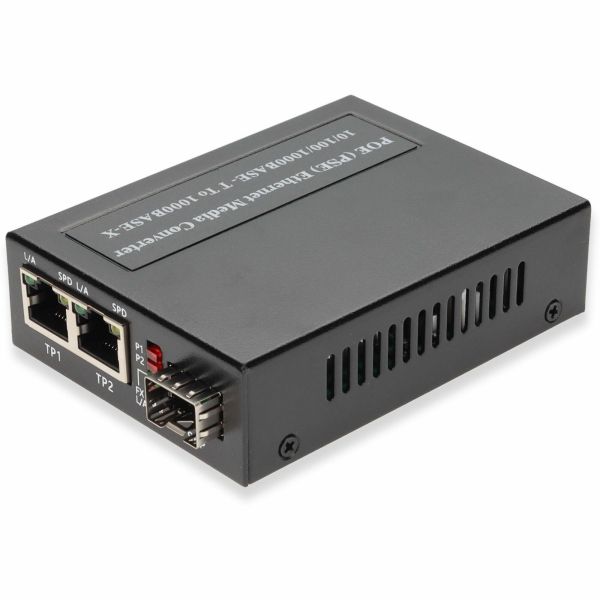

AddOn 10/100/1000Base-TX(RJ-45) x2 to 1 Open SFP Port POE (15W) Media Converter

Overview

Tech Specs

Specifications

Manufacturer	AddOn
Manufacturer Part Number	ADD-GMC-2RJSFP-POE
Manufacturer Website Address	http://www.addoncomputer.com
Brand Name	AddOn
Product Name	10/100/1000Base-TX(RJ-45) x2 to 1 Open SFP Port POE (15W) Media Converter
Marketing Information	This is a three port media converter that converts and supports two 10/100/1000Base-TX(RJ-45) to one 1000Base-X via an open SFP port connector. The open SFP port allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from two 10/100/1000Base-TX(RJ-45) to one 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. The two 10/100/1000Mbps UTP RJ-45 ports support full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). The PoE(PSE) ethernet switch is a Power Sourcing Equipment (PSE) which combines data transfered over cable with 48V(typical) power supply, providing power to IEEE802.3af powered device (PD) over CAT5e UTP cable (cable length up to 100 meters/330 feet). The two UTP RJ-45 ports are organized to be PoE output port, and each PoE port can output up to 15.4 watts (DC 48V/.35A) power into CAT5e twisted-pair cable. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.
Packaged Quantity	1
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
PoE Port Type	PSE
Number of Network (RJ-45) Ports	2

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode Multi-mode
Maximum Distance Supported	328.08 ft

I/O Expansions

Number of Total Expansion Slots	1
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	1

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-TX

Power Description

Power Source

Power Supply

Physical Characteristics

Form Factor	Standalone
Depth	3.8"

Miscellaneous

Country of Origin	China
TAA Compliant	Yes
